STM32H743IIT6 LQFP-176(24x24) Mcu CPU core: ARM-M series CPU maximum dominant frequency: 480MHz program memory capacity: 2MB program memory type: FLASH RAM total capacity: 1MB GPIO port number: 140 ADC (bits): 16bit operating temperature range: - 40 ℃~+85 ℃
Specification
Shipping:
1, We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS.
The packaging is very safe and strong. Please nitfy me you have any special needs
2, It will take around 3-5 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated.
So please consult the stock situation when you inquire.
Buyer Reading:
1. Please confirm receipt of products if the items you received,
and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution
2. We only guarantee delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours
Product parameters
Batch: -- Inventory:
Minimum order quantity: minimum packaging quantity:
Product model: STM32H743IIT6 Manufacturer: ST
Core processor: ARM ® Cortex ®- M7 core specification: 32-bit
Speed: 480MHz Connection capacity: CANbus, EBI/EMI, Ethernet, I ² C,IrDA,LINbus,MDIO,MMC/SD/SDIO,QSPI,SAI,SPDIF,SPI,SWPMI,UART/USART,USB OTG
Peripherals: undervoltage detection/reset, DMA, I ² S. LCD, POR, PWM, WDTI/O number: 140
Program memory capacity: 2MB (2M x 8) Program memory type: Flash
EEPROM capacity: - RAM size: 1M x 8
Voltage-power supply (Vcc/Vdd): 1.62V~3.6V data converter: A/D 36x16b D/A 2x12b
Oscillator type: internal operating temperature: - 40 ° C~85 ° C (TA)
Installation type: surface mount package/housing: 176-LQFP
Supplier's device package: 176-LQFP (24x24)
Introduction: Electronic components STM32H743IIT6 are designed and manufactured by ST, and are sold in Hunting Core Brand Mall. You can choose to download the data manual function manual such as Chinese materials, which contains the detailed use methods and tutorials of STSTM32H743IIT6.
FAQ:
Q1. What is the order process?
A: First we discuss the order details and production details via email or TM. Then we will send youa PI for
your confrmation. After we received the payment, we began processing the order.
Q2. How do I place an order?
A: You can contact us by email to find out your order details or place an order online.
Q3. How do I pay you?
A: After confirming our PI, we will ask you to pay.
Q4. How is your delivery time?
A: Under normal circumstances, the goods will be shipped within 3-5 working days after receiving the
payment, and finally depends on the order quantity.
Q5. Do you test all the goods before delivery?
A: Yes, we have 100% test before delivery.
|
|

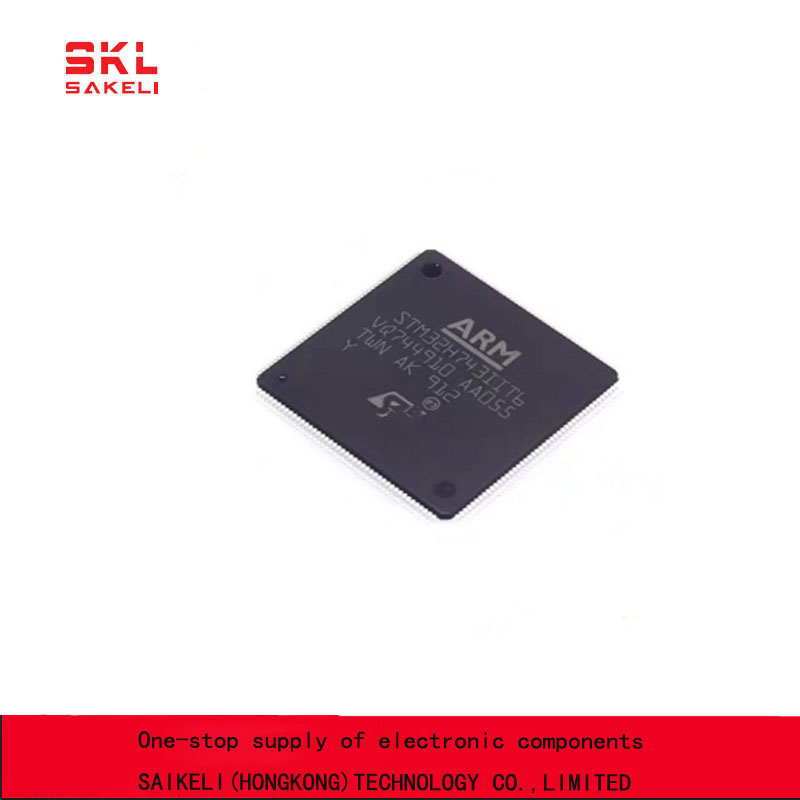

STM32H743IIT6 LQFP-176(24x24) Mcu Microcontroller Integrated Circuits Images
|
