LM76002RNPR Power Management Chip Synchronous Step-Down Buck Switching IC

  • 1
  • 2

Brand Name : TI

Model Number : LM76002RNPR

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1 - 3 days

Packaging Details : standard

Mounting Type : Surface Mount

Operating Temperature : -40°C ~ 125°C (TJ)

Voltage - Input (Min) : 3.5V

Voltage - Input (Max) : 60V

Package / Case : 30-WFQFN Exposed Pad

Supplier Device Package : 30-WQFN (6x4)

PN : LM76002RNPR

Contact Now

LM76002RNPR Power Management ICs PMIC

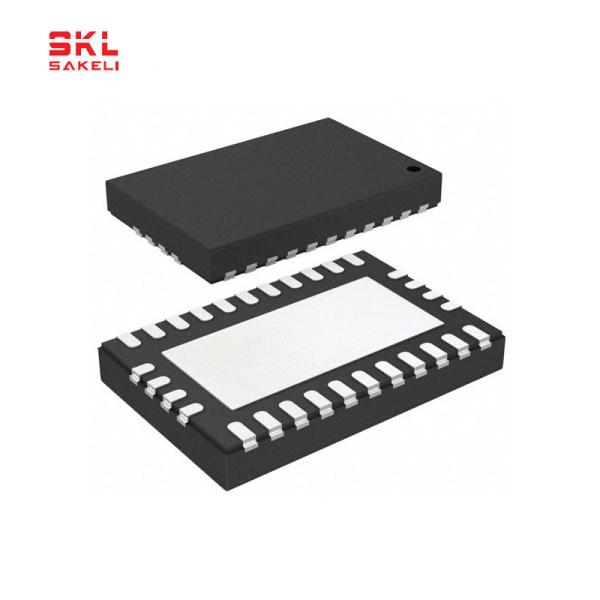

30-WFQFN Package Synchronous Step-Down Voltage Regulator Buck Switching IC

Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.5V
Voltage - Input (Max)
60V
Voltage - Output (Min/Fixed)
1V
Voltage - Output (Max)
57V
Current - Output
2.5A
Frequency - Switching
300kHz ~ 2.2MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount, Wettable Flank
Package / Case
30-WFQFN Exposed Pad
Supplier Device Package
30-WQFN (6x4)

Description

The LM76002RNPR regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002) or 3.5 A (LM76003) of load current from an input up to 60 V. The LM76002/LM76003 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed.

Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR22) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycleby-cycle current limit, and short-circuit protection. The LM76002/LM76003 device is available in the WQFN 30-pin leadless package with wettable flanks.
