Brand Name : SAIKELI
Model Number : STM32F401RCT6
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, L/C
Supply Ability : 5000
Delivery Time : 3-4works day
Packaging Details : Reel/Tube/Tray/Box
Catalog : (MCU/MPU/SOC)
CPU core : ARM Cortex-M4
CPU maximum dominant frequency : 84MHz
Peripherals/functions : PWM; watchdog; PWM
Operating voltage range : -40°C ~ 85°C
I/O number : 50
Connectivity I? : C,IrDA,LINbus,SDIO,SPI,UART/USART,USB OTG
Quality : 100% tested ok

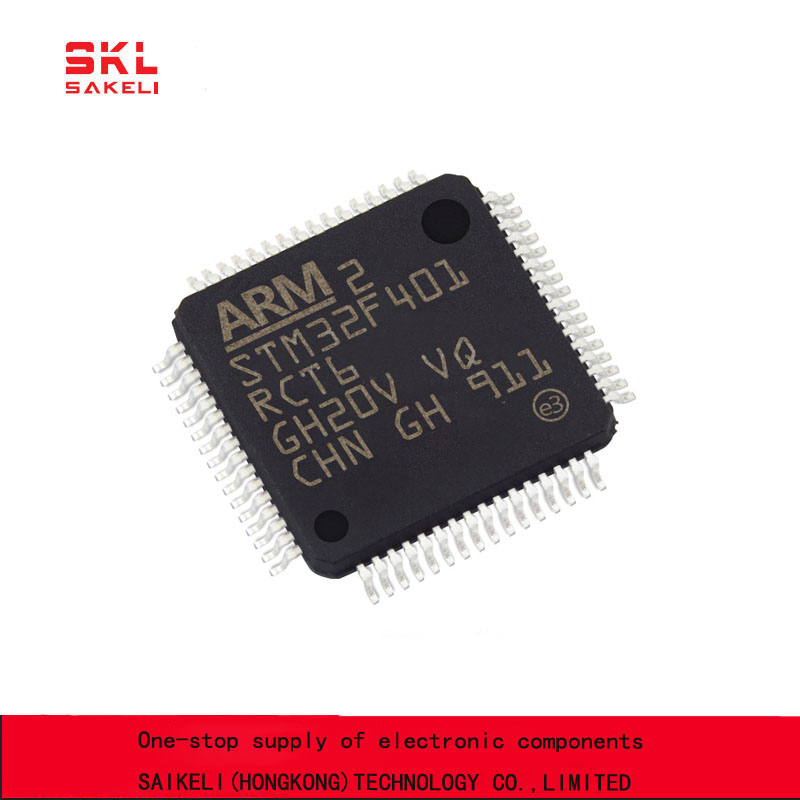

STM32F401RCT6 LQFP-64 Mcu
Description:
CPU core: ARM Cortex-M4 CPU maximum dominant frequency: 84MHz
Program storage capacity: 256KB Program storage type: FLASH
Total RAM capacity: 64KB GPIO ports: 50 ADC (bits): 12bit
Operating temperature range: - 40 ℃~+85 ℃ Cortex-M4 ARM,
With DSP and FPU (floating point computing unit), 256KB Flash,
84MHz frequency, low power consumption
Shipping:
1, We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS.
The packaging is very safe and strong. Please nitfy me you have any special needs
2, It will take around 3-5 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated.
So please consult the stock situation when you inquire.
Buyer Reading:
1. Please confirm receipt of products if the items you received,
and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution
2. We only guarantee delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours
Features
Product parameters
Batch: -- Inventory:
Minimum order quantity: minimum packaging quantity:
Product model: STM32F401RCT6 Manufacturer: ST
Catalog: 32-bit MCU series: STM32F401RC
Core processor: ARM ® Cortex ®- M4 core size: 32-bit
Speed: 84MHz Connectivity: I ² C,IrDA,LIN,SDIO,SPI,UART/USART,USB OTG
Peripherals: undervoltage detection/reset, DMA, I ² S. POR, PWM, WDT program storage capacity: 256KB (256K x 8)
Program memory type: FlashRAM capacity: 64K x 8
Data converter: A/D 16x12b oscillator type: internal
Working temperature: - 40 ° C~85 ° C (TA) ADC resolution: 12bit
Number of ADC channels: 16Channel processor family: STM32F401
Working power supply voltage: 1.7Vto3.6V Interface type: I2C, SPI/I2S, SDIO, USART, USB
Data RAM size: 64kB Data Ram type: SRAM
Data bus width: 32bit Maximum clock frequency: 84MHz
Core: ARMCortexM4 power supply voltage - maximum: 3.6V
Power supply voltage - minimum: 1.7V watchdog timer: WatchdogTimer, Windowed
Program memory size: 256kB
Introduction: The electronic components STM32F401RCT6 are designed and manufactured by ST and are sold in Hunting Core Brand Mall. You can choose to download the data manual function manual such as Chinese materials, which contains the detailed use method and tutorial of STSTM32F401RCT6
FAQ:
Q1. What is the order process?
A: First we discuss the order details and production details via email or TM. Then we will send youa PI for
your confrmation. After we received the payment, we began processing the order.
Q2. How do I place an order?
A: You can contact us by email to find out your order details or place an order online.
Q3. How do I pay you?
A: After confirming our PI, we will ask you to pay.
Q4. How is your delivery time?
A: Under normal circumstances, the goods will be shipped within 3-5 working days after receiving the
payment, and finally depends on the order quantity.
Q5. Do you test all the goods before delivery?
A: Yes, we have 100% test before delivery.
![]() |
STM32F401RCT6 LQFP-64 Mcu Microcontroller Integrated Circuits Images |
